CPRmeter 2

CPRMeter 2具有两个嵌入式传感器：一个测量加速度和另一种测量力。复杂的微处理器在每种压缩过程中连续测量这两个参数，而特殊的算法将收集的数据转换为有意义的信息。

加速度计测量每次压缩过程中胸壁运动的深度和速率，并将其转换为行进的距离。力传感器测量在心肺复苏期间施加的力，并用于多个目的，最重要的是检测压力在压缩之间未完全释放，即如果在CPR期间响应者倾斜，则提供反馈。

CPRMeter 2利用了Philips MRX，Philips XL+和Philips FR3除颤器中发现的类似Q-CPR技术。

CPR feedback devices (CPRmeter) have been shown to improve the quality of CPR, which can ultimately save lives. We are now extending the indication for use of the CPRmeter 2 from >8 years to >1 year in the European market, following the European Guidelines (ERC) for children with Sudden Cardiac Arrest (SCA), so that children can get the same treatment as adults.

Thus, there are two CPRmeters 2 with different age indications addressing different markets, affecting User Guides and product labeling.

Catalogue number and description

• 801-00240, CPRmeter 2 (Nordic) > 1 year
• 801-00241, CPRmeter 2 (Multi) > 1 year
• 801-00243，CPRMeter 2（AP）> 8年
• 801-00249，CPRMeter 2（US）> 8年
• 801-00245, CPRmeter 2 (Japan) >8 years

当需要冲击时，CPRMeter 2可以保持在患者的胸部，但应停止压缩，从CPRMeter 2中移开手，并根据适当的除颤方案在除颤期间或其他需要时清除所有患者接触。

您应该关闭Manikin给出的反馈。CPRMeter 2是一种医疗设备，旨在为救援人员提供CPR指南，以在各种具有复杂胸部特性的患者中使用。CPR Manikins倾向于具有简化的胸部机械模型，适用于在执行CPR中对用户进行培训。因此，这两个模型倾向于具有不同的测量技术和公差，因此很难比较并遵循两组提供的反馈。

CPRmeter 2 is not intended for use in a moving environment, such as an ambulance. If used during patient transport, CPRmeter 2 may provide inaccurate feedback. If CPR is indicated in a moving environment, do not rely on CPRmeter 2 depth feedback during such conditions. It is not necessary to remove the device from the patient.

是的,CPRmeter 2有一个IP 55rating.

Protected from limited dust ingress.

Protected from pressure water jets from any direction.

CPRmeter 2 continuously monitors the power of its 2 AAA batteries. The low battery indicator will be shown during a CPR event if the remaining power is less than that required for an entire CPR event. The battery should last for a minimum of 10 episodes of 30 minutes continuous CPR. If CPRmeter 2 remains in standby mode then the battery should last 2 years and last for 2 30 minute CPR events. We recommend use of high quality alkaline batteries for use with the CPRmeter 2.

The CPR event statistics are stored when CPRmeter 2 is turned off. When turned on again, the statistics from the stored CPR event can be reviewed. When CPRmeter 2 is used in a new CPR event, the preceding event’s statistics are removed from the Quick Review and the new event’s statistics are shown in Q-CPR Quick Review.

Q-CPR is a trademarked technology platform developed by Laerdal to help train providers deliver guideline quality CPR in real-life emergencies. This technology offers objective measurement and corrective feedback on essential CPR parameters, as well as parameter logging for subsequent debriefing or analysis.

The Patient Adhesive should be replaced after clinical use, or every two years.

The mobile App was created with the purpose of giving users the possibility to debrief in much higher detail, with accurate data that is simple to access, store, share and visualize.

只需单击几下，您就可以在活动发生后立即访问深入的汇报share it with your team or quality managers.

• YOU可以在肖像模式下获得心肺复苏会话的概述

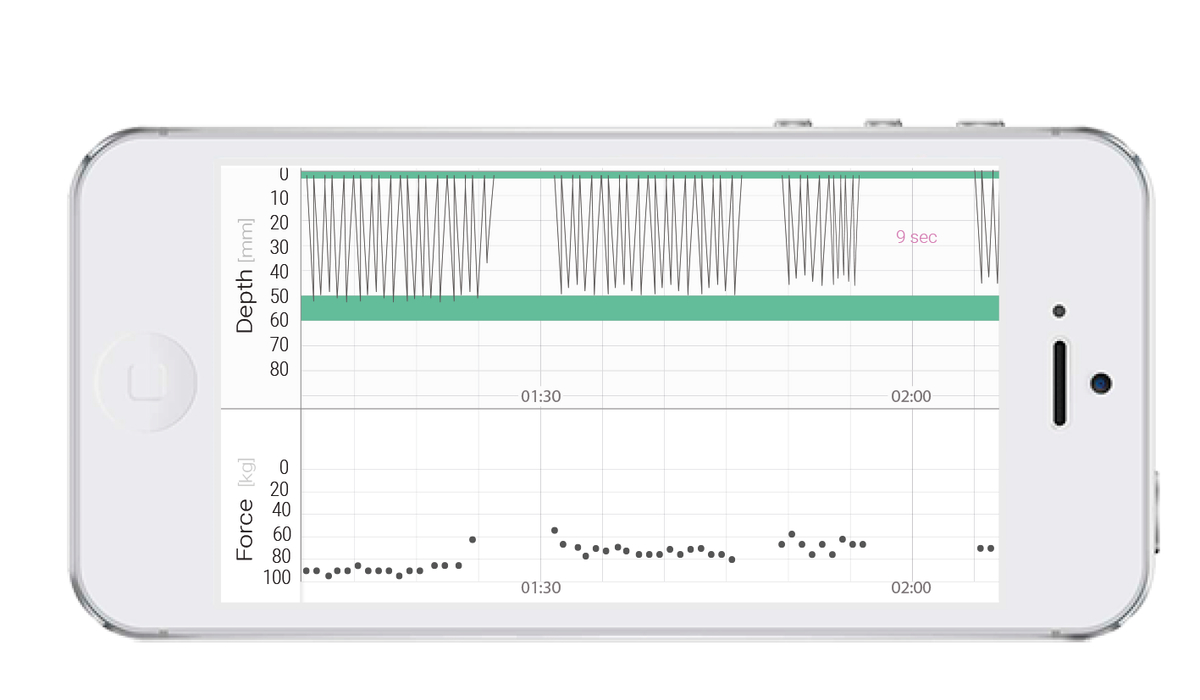

• Rotate your phone to the side, and get对每种压缩的深度，释放，力（kg）和速率进行详尽的了解。
• Pinch and zoom in and out to analyze specific events.

此外,如果你想分享你的沟纹e, you will get a .zip folder containing:

1. A PDF ScoreCard of session performance for debriefing
2. An excel analytical summary
3. Data on each compression in an Excel file
