Elvytyksen laadun pisteytys

We know good CPR gives higher survival rates, and the idea about scoring is to reflect how good the performance really is为患者.

Previously, CPR feedback has been given with a strict approved/non-approved result. Over the last 10 years, Laerdal and our partners have created an algorithm providing a more detailed and granular CPR score. Let’s illustrate with an example:

Example:Meet Julie, a top CPR performer who failed the CPR test

Julie is an emergency nurse in a UK hospital. She is physically fit, and able to provide solid depth of more than 50mm in every compression - all fully released and with absolutely no interruptions. She is one of the best CPR performers we’ve ever seen. Still, after the session, the binary CPR feedback said she had failed. Why?

The rate of her compressions were a consistent 122 compressions per minute. Clinically superb, but just a tiny bit outside of the magic 100-120-limit in the guidelines. Was it fair to tell her she failed? No. If your life was on the line, you’d want Julie to perform CPR on you.

当使用旧的二进制评分时，我们一直都看到这些结果，这是我们制作新算法CPR的原因之一。

While other providers of CPR scoring only use binary numbers, Laerdal uses a non-binary approach to present a more realistic and lifesaving performance review. The simple reason is that while both 49 mm and 25 mm compression depth is outside of the guideline threshold, 49 is undoubtedly, and by far, a much more desired performance.

• Binary scoring:Simply passed or failed. In the introductory example, Learner 1 had 94% of the compression in the correct range of 50-60 mm. The remaining compressions were outside the guidelines. There is no distinction between for example 25 mm and 49 mm. They are both "inadequate".
• Non-binary numbers:The bigger the deviation, the bigger the score reduction. In other words, 49 mm compression depth gives a far better score than 25 mm.

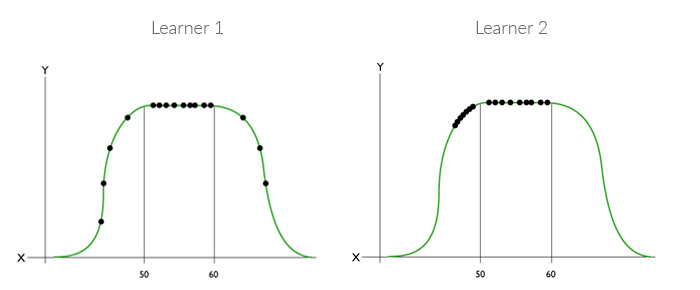

Fig 1. Non-binary scoring.
Learner 1 and 2 have equal amount of compressions inside and outside of the guideline threshold. But Learner 2 get the higher score since compressions outside the thresholds are closer to the guideline.The same principle is used on all other CPR skills. (figure not to scale, for illustrative purposes only)

The algorithm which makes up the QCPR score is made by Laerdal Medical in close collaboration with members of the AHA ECC Subcommittees and co-authors of the 2013 AHA Consensus Statement on CPR Quality. Based on input from these specialist members, we created mathematical models for each sub-skill in CPR performance, like compression depth, leaning, ventilation volume, etc.

Each compression and ventilation are tracked and scored individually and summed up in the overall score. Even though numbers like average rate can be interesting, averages are not used to calculate the overall score. Similarly, the binary numbers do not affect the score calculation directly.

减去评分模型
评分算法使用减法评分模型，在该模型中我们以完美的分数开始，如果学习者做错了什么，那么得分就会降低。如果您在准则中，您将始终获得100％的分数。如果偏离，则分数会降低。

Plotted along an S-curve, we can see that small deviations give small reductions in the overall score, while large deviations result in large reductions in CPR scores:

Fig.2 : Compression rate on the x-axis, and score on the y-axis.
We see that the CPR score deteriorates quickly on both sides of the guideline thresholds. (graph not to scale, for illustrative purposes only)

A popular feature of our QCPR manikins is the QCPR race where up to six learners can participate in a race to see which one performs the best CPR.

Sometimes we see that while one participant achieves the best score on binary sub-metrics (like adequate depth percentage), another participant will be crowned the winner of the race. The binary sub-metrics (like percentage of adequate depth) will not always help explain the CPR score.

Example 1 - high score with low binary metrics:

两个学习者执行100个压缩。学习者2的总分比学习者1更好，即使学习者1仅查看二进制指标，学习者1具有更好的压缩深度。

The reason is that learner 2 wascloserto the guidelines during the 10 compressions that were not fully "adequate", and learner 1 was very far away from the guidelines during the 8 compressions that were not "adequate".

Example 2 - Ventilations over the limit:

In another example, both learners provide too much air in ventilation and miss the ventilation sub-metric.

Let's say learner 2 gave 610 ml of air (which is clinically OK) and learner 1 provided 2000ml of air, which indeed can compromise the clinical outcome. In binary terms, these results are the same, simply "not adequate". However, in clinical terms, and therefore also in scoring terms, they are very different. Learner 2 was much closer to the guidelines and receives a higher score.

有时,特别是for 'Compressions Only' sessions - the total score is unexpectedly low, even though compression rate, depth, and release are all perfect (see image below).

The score reduction for many of those sessions comes from the chest compression fraction. If your compressions are interrupted, there will be a reduction in the score - longer interruptions give larger score reductions.

Also worth noting, if you are running a ”Compression only” sessions, the expected chest compression fraction is 100%, as you have no good reasons to stop the compressions. So, if there are interruptions, the score is reduced rather strictly.

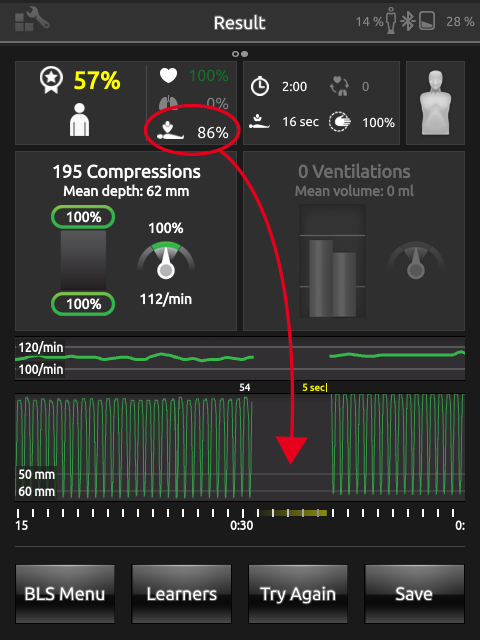

Illustration, Compression only session: Rate, depth, and release are all perfect. However, the total score is unexpectedly low. The culprit is the chest compression fraction parameter.

The number of parameters scored depends on which manikin or simulator you use, and which software or application you use.

10 parameters used to calculate QCPR score:

• Compression depth
• Compression rate
• Incomplete release
• Hand position
• Compression per cycle
• Chest compression fraction (also known as flow fraction)
• Ventilation volume
• Ventilation rate
• Number of pre-ventilations
• Inspiration time in pre-ventilations
